| u-Link NT |
|---|

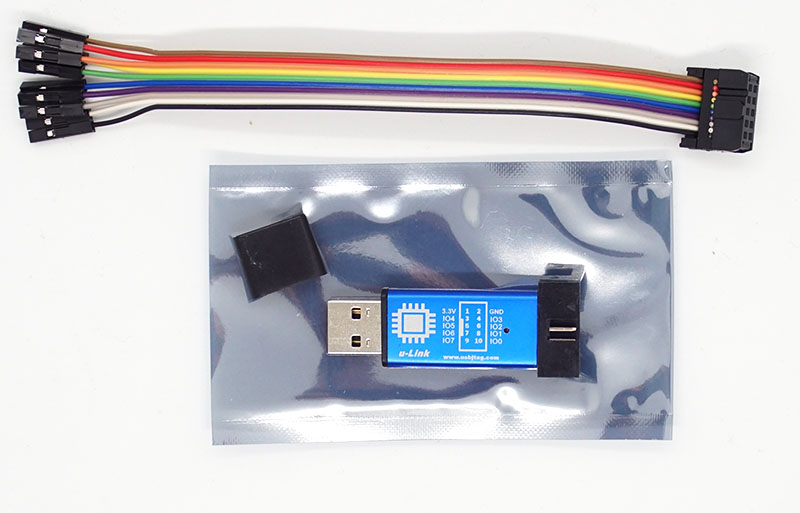

| Product Picture |  |
|---|
| HW Release date | Jan 2020 |
|---|
| Chip selected. | STM32F103. 72MHz ARM Cotex-M3 |
|---|
| TCK clock | Adjustable 18MHz, 9MHz 4.5MHz, 2.24MHz wider range of target support for slower target |
|---|
| Protocol | MIPS32,MIPS64,DCU(ST20),SPI, I2C EEPROM.
(ARM920T and ARM946),DCU3 (Sti5517),ppc (DM500),ST40,CPLD (Jam player),Atmega, 93CXX EEPROM, JTAG pin finder.
MPC8XX,MPC5XX,MC9S12(BDM),MC6833X(BDM),MC68F375(BDM),EMMC,SDCARD,SPI EC KB90XX,MEC16XX |
|---|
| Connector | 10 pin 0.1pitch jumper cable.
|
|---|
| SPI read speed | 900KB/s |
|---|
| SPI write speed | 230-260KB/s(8 seconds to program MX25FL0165A) |
|---|
| SW developer | www.usbjtag.com |
|---|
| Target CPU support | MIPS32, DMA, non-DMA
MIPS64 non-DMA, ST20.SPI serial flash,I2CEEPROM. Conexant CPU,ARM9,DCU3,ST40,MPC8XX,MC6833X
Future support CPU, MIPS64 DMA,ARM7
|
|---|
| CLI Software version | CLI interface, Latest version is 1.50 |
|---|
| GUI Software version | UJModem 1.05 lot easier than CLI and still support command line.
 |
|---|
| Software download | https://www.usbjtag.com/filedownload/index.php |
|---|
| State of the software | Active development. New features will be added. New hardware will be supported. |
|---|
| Configuration | XML config files. Better organized for huge target and flash type support. |
|---|
| Script support | Supported. |
|---|
| Board Tested | Cable Modems:All MIPS based (Broadcom) modems include SB5100,SB5101,SB5102(SPI),RCA315,RCA325,SB4200,SB4100,SBV5120,SBG900,SB6120(SPI),SB6121,SB6141,SGB6580,DCP3000,CG3100D,etc.
Cable boxes:DCT2500,DCT700,DCT6412,DP501
Routers:WRT54G family. WRT350N.WRT400,M20,MN700,EA2700,WGR614v9(0.36).AR430W (SPI over JTAG),Meraki MR18.
VOIP: RTP300,WRTP54G,VT2142,VT2442,VT2542.D-link VWR-VD.WGR615V.VT1000(5),DVG-1120
Satellite receivers: MIPS based, IRD301-010.ST20 based FTA boxes,IRD2700,IRD301.013,Pansat etc.
Conexant CPU: Viewsat, Sonicview, CNX Nano2, Nano Premium
PPC: DM500
DCU3:Sti5505 (XV3300)
EEPROM, 24LC00-24LC1024.
ST40:Sonicview 8000HD(Sti7100). IPTV(Sti5202), STi5202 NAND
XBOX360Nand programming.
ECU:E38 (MPC561).E67,E40,P12 (All master and slave)
TM1602:EMMC.
KB9012,KB9022
MEC1619
MPC5675K.
|
|---|
| OS Support | Windows, Linux, MacOS |
|---|
| User manual |
User manual of NT
|
|---|
| Support | www.usbjtag.com/phpbb3 |
|---|
| Youtube videos | https://www.youtube.com/user/usbbdm/videos |
|---|
