| XBOX360 NAND programming |

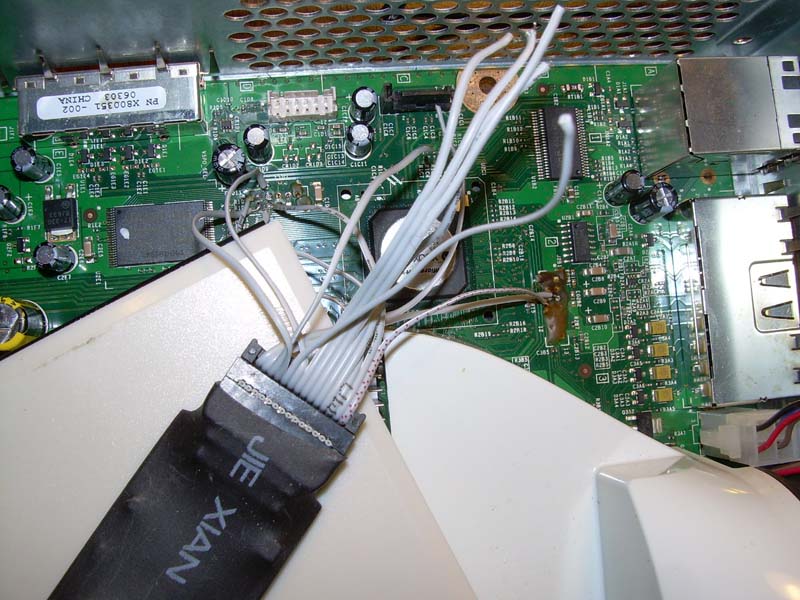

| Picture showing the connection of the board. |
| Signal | XBOX PIN | USBJTAG PIN | u-Link NT |
| EJ | J2B1.5 | Pin 13(DEBUG) | Pin 3(IO4) |
| XX | J2B1.6 | Pin 1(TRST) | Pin 5(IO5) |
| SS | J1D2.2 | Pin 11(RESET) | Pin 4(IO3) |
| SCK | J1D2.3 | Pin 9(TCK) | Pin 6(IO2) |
| MOSI | J1D2.1 | Pin 3(TDI) | Pin 10(IO0) |
| MISO | J1D2.4 | Pin 5(TDO) | Pin 8(IO2) |
| GND | J1D2.6 | Pin 2 | Pin 2(GND) |
Software muct be USB JTAG NT 0.33 and higher. Video for programming
